The Tenda TEG1016D 16*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7*24.
- Complies with IEEE 802.3x full-duplex and flow control
- NMA auto-negotiation
- Supports UPnP
- Provides 16 (TEG1016D) auto-negotiation 10/100/1000Mbps LAN ports
- Supports auto MDI/MDIX
- Non-blocking
- Store-and-forward switching
- Integrated 8,000 MAC address table
SKU: 1000010

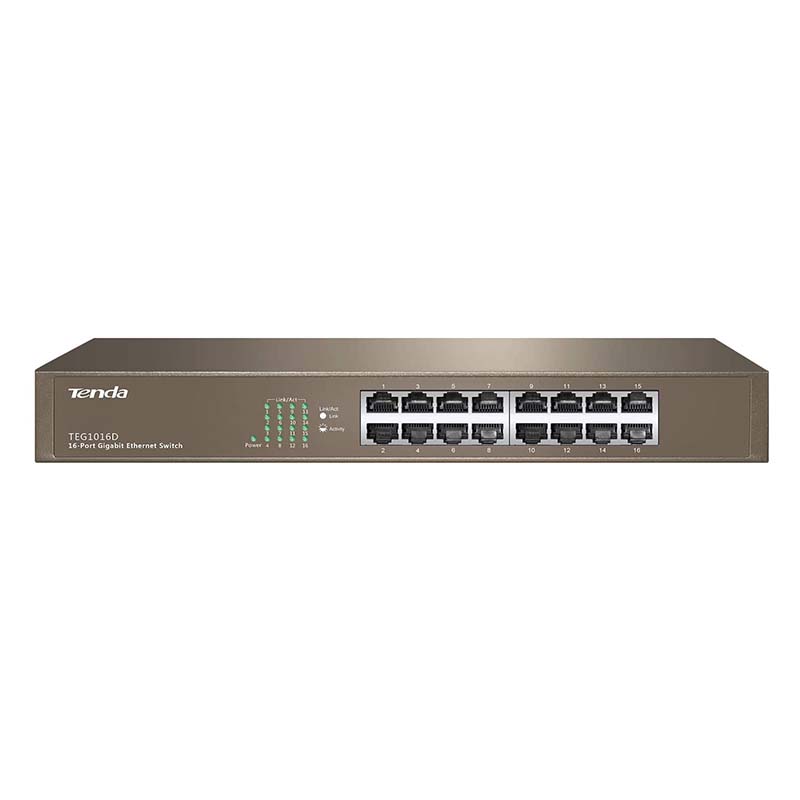

Tenda TEG1016D 16-Port Gigabit Unmanaged 16-Port 10/100/1000 Mbps Ethernet Switch
Standard&Protocol
IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3ab
Cabling type
Category 5e or better
Port
16*10/100/1000M Base-T Ethernet ports (Auto MDI/MDIX)
LED indicator
1*Power，16*Link/Act
Dimension
294mm×178mm×44mm , 1U height
Mounting options
Desktop or rack mount
Forwarding Mode
Store and Forward
Switching Capacity
32Gbps / non-blocking
Forwarding capacity
23.8 mpps
Lightning Protection
6KV for power supply ，6KV for all RJ45 ports
Power Supply
100~240V AC，50/60Hz
Temperature
Operating|Storage temperature:-10°C~45°C | -40°C~70°C
Humidity
Operating|Storage humidity:10%~90% RH（noncondensing） | 5%~90% RH（noncondensing）
