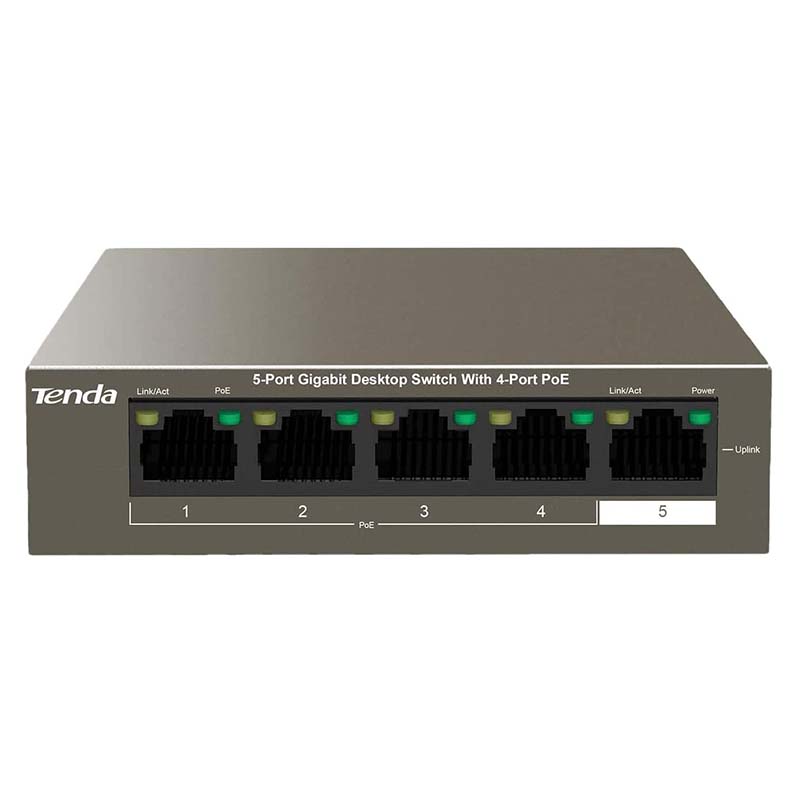

TEG1105P-4-63W is a Tenda PoE switch that offers 5*10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-4 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3 at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 58 W and can supply power to APs, IP cameras, and IP phones and exchange data with them through CAT5 cables. It also provides simple management modes such as VLAN to help reduce cabling costs of IP terminals like APs and IP cameras.
- 5 Gigabit Ports-Five 10/100/1000 Mbps base-TX RJ45 Ports, with 1 Uplink Port and 4 PoE ports, which are IEEE802.3af and IEEE802.3at compliant
- 58w POE Power Supply-Delivers a combined PoE power output of 58W, with 30W connections to each port, to supply power and exchange data to WiFi Access Points and IP Cameras.
- 6kv Lightning Protection-Shielded ports, with embedded power, provide lightning protection up to 6kV, PSE short-circuit protection, PoE overload-protection, Surge-Protection and protection from over-heating.
- One-Key Vlan-With “VLAN mode” enabled, ports 1-4 will isolate themselves respectively, while maintaining communication with the 5th Port, to protect you from broadcast-storms and DHCP spoofing.
- Simple & Convenient-User-friendly plug & play setup, requires no configuration or software and supports both desktop or wall mounting.
