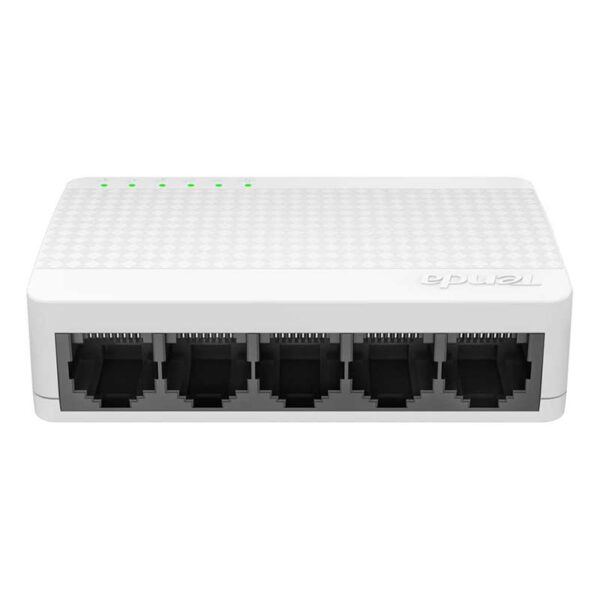

Tenda SOHO Fast Ethernet switches offer plug-and-play simplicity, reliability for your small office or home/office network. They come in plastic and Compatible with computer, printer, smart TVs, NAS, smart game console, IP-cameras, Tenda SOHO 10/100M switches makes your home network fun & easy.
- Plug-and-play – Easy setup with no configuration or software required
- Nice & small The S105 is 3in x 2 in, taking up minimal space while delivering maximum efficiency
- Ethernet splitter – Provides quick and Easy connectivity to your router and/or modem, Offering additional wired connections for your laptop, gaming console, printer, etc…
- 5 Port Fast Ethernet – features five 10/100 Mbps auto-negotiating RJ45 ports to greatly expand your network capacity and supports Auto MDI/MDIX
- Auto-negotiation – supports Auto-MDI/MDIX, eliminating the need for crossover cables
SKU: 1000008
Tenda 5 Port Fast Ethernet switch | Ethernet Splitter | Plug-and-Play | Traffic Optimization | Unmanaged
Standard&Protocol
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Port
5*10/100M auto-negotiation RJ 45 ports (Auto MDI/MDIX)
Transmission Media
10Base-T: UTP Cat 3( or better)
100Base-TX: UTP Cat5
Packet Forwarding Rate
10Mbps：14880pps
100Mbps：148800pps
Power
Output power: 5.0V 0.6A (external power adapter)
Input Power :AC:100～240V；50/60Hz
Dimension
82.00mm*52.00mm*22.30mm( L*W*H）
Indicator
1*power indicator, 5*status indicator
Backbound Bandwidth
1.0Gbps
Power Consumption
Standby: 0.8W Maximum：1.59W
Forwarding Mode
Store-and-Forward
Temperature
Storage Temperature: -40℃~70℃
Operating Temperature: 0℃~40℃
Humidity
Storage Humidity: 5%~90% non-condensing
Operating Humidity: 10%~90% non-condensing
Certification
CE
FCC
RoHS
Operation System
Windows 8 32/64 bit，Windows 7 32/64 bit，Windows xp 32/64 bit，Linux，MAC OS
Package Content
1* Installation Guide
1 * 5-port Ethernt Switch
1* Power Adapter (5V0.6A)
