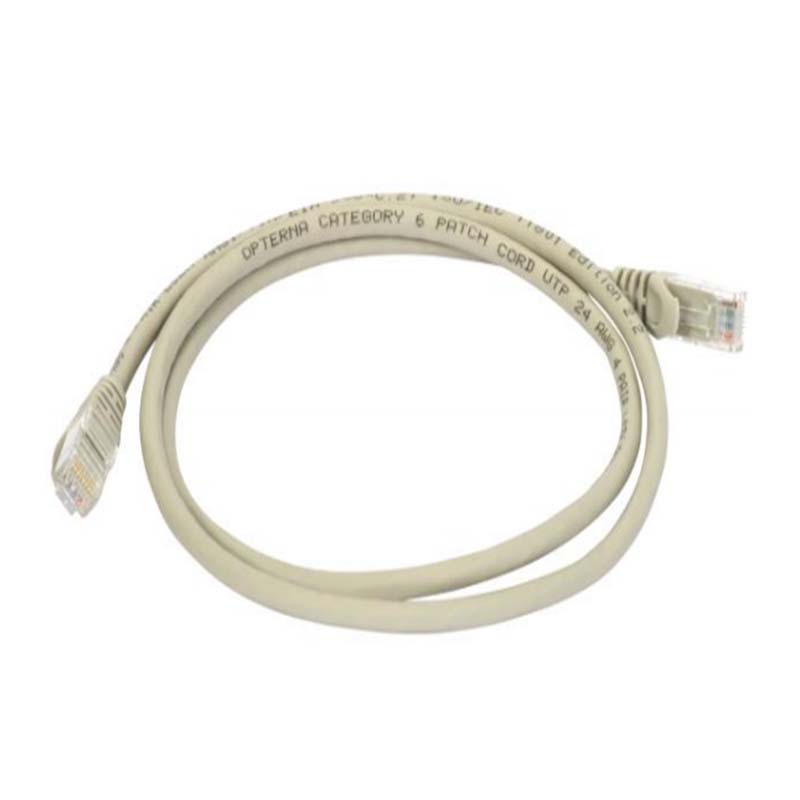

SCSPCC6UTP01MLSZHGY Opterna Patch cord UTP, category 6, standard plug , LSZH 1 meter grey

Opterna

• Cross connect, Patch Panel and Work Area
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• 155 Mbps ATM
• 100 Mbps TP-PMD
• Analogue Voice, ISDN, ADSL

Standards

• ANSI/TIA-568-C.2
• ISO/IEC 11801:2011 (Ed 2.2) Class E
• CENELEC EN 50173-1:2011
• ANSI/TIA-1096-A (formerly FCC Part 68)
• IEC 60603-7-4

Opterna UTP Patch cord conforms to ANSI/TIA-568-C.2, ISO/IEC 11801:2011 edition 2.2 and CENELEC EN 50173 (2011) for Category 6/Class E applications. The products have been tested up to 250MHz and are designed for high speed protocols such as Gigabit Ethernet (1000Mbps) applications. The Patch cords are constructed of a U/UTP stranded wire cable and comprises two modular plugs at both ends of the cables. The RJ45 plugs are protected with molded snag-less boots that prevents the latch on the RJ45 plugs from getting damaged during installation.
