Opterna category 6 unshielded jacks are designed and manufactured to meet and exceed the current and future requirements for high bandwidth and forms an essential element of the structured cabling system. The keystone jacks are highly reliable and offers optimal network performance. The jack forms part of the faceplate as well as part of the modular patch-panel. Clear wire retaining caps are supplied which provide additional cable strain relief. The keystone jacks are color-coded for both 568A and 568B standards and can be terminated using a standard 110 termination tool.

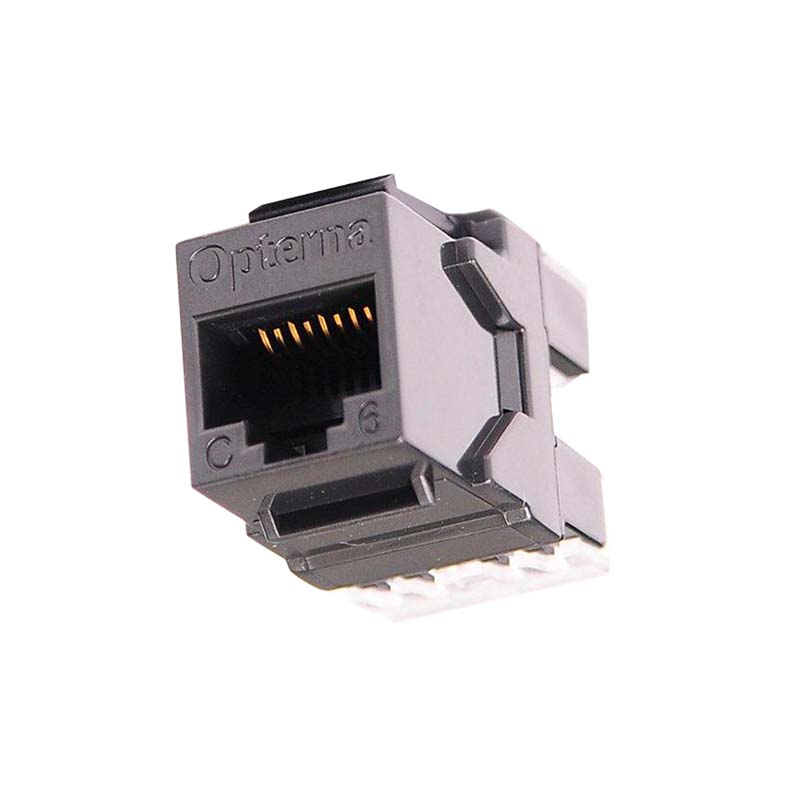

SCSJAC6UTPBK Opterna 180° Cat 6 Unshielded Keystone jack with T568A/B label, Black
Horizontal Distribution and Backbone Cabling
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• 155 Mbps ATM
• 100 Mbps TP-PMD
• Analogue Voice, ISDN, ADSL
• HVAC alarm systems and other signalling
Standards
• ANSI/TIA-568-C-2
• ISO/IEC 11801:2011 (Ed 2.2) Class E
• CENELEC EN 50173-1:2011
• ANSI/TIA-1096-A (formerly FCC Part 68)
• IEC 60603-7-4
